NanoCore — 8-bit CPU Emulator

Features

CPU

True 8-bit Architecture

All registers, Program Counter, Stack Pointer, and memory addresses are strictly 8-bit. No shortcuts.

ASM

Built-in Two-pass Assembler

Write .nca assembly files with labels, constants, strings, and raw data directives. Assembles to compact binary .ncb format.

TUI

Terminal UI Debugger

Interactive debugger with register state visualization, memory view, instruction log, and breakpoint support — all in your terminal.

VAR

Variable-length Instructions

1-byte, 2-byte, and 3-byte instructions pack maximum program logic into 256 bytes of addressable space.

FDE

Fetch-Decode-Execute

Modular CPU design with distinct Fetch, Decode, and Execute phases makes the architecture transparent and educational.

ERR

Typed Error Handling

Stack overflow/underflow, division by zero, invalid operands — all represented as structured Rust error types with useful diagnostics.

Architecture

NanoCore models a simple but complete von Neumann architecture. All components live in 256 bytes.

Registers

R08-bit

R18-bit

R28-bit

R38-bit

R48-bit

R58-bit

R68-bit

R78-bit

R88-bit

R98-bit

R108-bit

R118-bit

R128-bit

R138-bit

R148-bit

R158-bit

Special Registers

PCProgram Counter0x00 – 0xFF

SPStack Pointer0xEA – 0xFF

Flags

ZZero

CCarry

NNegative

Memory Map (256 bytes)

Program / Data 0x00 – 0xE9

Stack 0xEA – 0xFF

Stack grows downward from 0xFF. 22 bytes available. Program loads at configurable start address.

Instruction Set

45+ instructions across 7 categories. Variable-length encoding (1–3 bytes).

Control Flow

Mnemonic	Operands	Bytes	Description
`HLT`	—	1	Halt execution
`NOP`	—	1	No operation
`JMP`	addr	2	Unconditional jump to address
`JMPR`	Rx	2	Jump to address in register
`JZ`	addr	2	Jump if Zero flag set
`JNZ`	addr	2	Jump if Zero flag clear
`CALL`	addr	2	Call subroutine (push return addr)
`CALLR`	Rx	2	Call subroutine via register
`RET`	—	1	Return from subroutine

Load / Store

Mnemonic	Operands	Bytes	Description
`LDI`	Rd, imm8	3	Load immediate value into register
`LDA`	Rd, addr	3	Load from memory address into register
`LDR`	Rd, Rs	2	Load from address in Rs into Rd
`MOV`	Rd, Rs	2	Copy register Rs into Rd
`STORE`	addr, Rs	3	Store register into memory address
`STR`	Rd, Rs	2	Store Rs at address held in Rd

Arithmetic

Mnemonic	Operands	Bytes	Description
`ADD`	Rd, Rs	2	Rd = Rd + Rs
`ADDI`	Rd, imm8	3	Rd = Rd + imm8
`SUB`	Rd, Rs	2	Rd = Rd − Rs
`SUBI`	Rd, imm8	3	Rd = Rd − imm8
`INC`	Rd	2	Rd = Rd + 1
`DEC`	Rd	2	Rd = Rd − 1
`MUL`	Rd, Rs	2	Rd = Rd × Rs
`MULI`	Rd, imm8	3	Rd = Rd × imm8
`DIV`	Rd, Rs	2	Rd = Rd ÷ Rs
`DIVI`	Rd, imm8	3	Rd = Rd ÷ imm8
`MOD`	Rd, Rs	2	Rd = Rd mod Rs
`MODI`	Rd, imm8	3	Rd = Rd mod imm8

Logic

Mnemonic	Operands	Bytes	Description
`AND`	Rd, Rs	2	Rd = Rd & Rs
`OR`	Rd, Rs	2	Rd = Rd \| Rs
`XOR`	Rd, Rs	2	Rd = Rd ^ Rs
`NOT`	Rd	2	Rd = ~Rd
`CMP`	Rd, Rs	2	Set flags from Rd − Rs (no store)

Bit Shifts

Mnemonic	Operands	Bytes	Description
`SHL`	Rd, Rs	2	Logical shift left
`SHR`	Rd, Rs	2	Logical shift right
`ROL`	Rd, Rs	2	Rotate left
`ROR`	Rd, Rs	2	Rotate right

Stack

Mnemonic	Operands	Bytes	Description
`PUSH`	Rs	2	Push register onto stack
`POP`	Rd	2	Pop top of stack into register

I/O

Mnemonic	Operands	Bytes	Description
`IN`	Rd	2	Read a byte from stdin into Rd
`PRINT`	Rs	2	Print register value as ASCII char

Assembly Language

NanoCore Assembly (.nca) is a simple, human-readable format. Write programs, assemble to binary, run or debug them.

Syntax Reference

; This is a comment

; Define a constant
.CONST MAX 10

; Embed raw bytes
.DB 0x41 0x42 0x43

; Embed an ASCII string
.STRING "Hello"

; Label definition
start:
    LDI  R0  0     ; R0 = 0
    LDI  R1  1     ; R1 = 1
    LDI  R2  MAX   ; R2 = 10 (constant)

loop:
    ADD  R0  R1    ; R0 += R1
    DEC  R2        ; R2--
    JNZ  loop      ; repeat if R2 != 0
    HLT            ; done


Fibonacci Sequence

start:
    LDI  R0   0
    LDI  R1   1
    LDI  R2   12     ; count
    LDI  R12  32     ; space char

loop:
    JMP  print
resume:
    MOV  R3   R1
    ADD  R1   R0
    MOV  R0   R3
    DEC  R2
    JNZ  loop
    HLT

print:
    PUSH R10
    MOV  R10  R0
    DIVI R10  10
    JZ   unit
    ADDI R10  48
    PRINT R10
unit:
    MOV  R10  R0
    MODI R10  10
    ADDI R10  48
    PRINT R10
    PRINT R12
    POP  R10
    JMP  resume


Assembler Directives

.CONST name value

Define a named constant. Use the name anywhere an immediate value is expected.

.DB byte [byte ...]

Embed raw byte literals directly into the program at the current position.

.STRING "text"

Embed a null-terminated ASCII string into the program at the current position.

CLI Tools

Three binaries — emulator, assembler, and debugger.

nanocore Emulator

# Run a pre-assembled binary
$ cargo run -- programs/test.ncb

# Auto-assemble and run .nca source
$ cargo run -- programs/fib.nca

# Print CPU state after each cycle
$ cargo run -- programs/test.nca -s

# Print each instruction as it executes
$ cargo run -- programs/test.nca -i


nca Assembler

# Assemble source to binary
$ cargo run --bin nca -- \
    -i programs/fib.nca \
    -o programs/fib.ncb

# Outputs compact .ncb binary
# ready for distribution

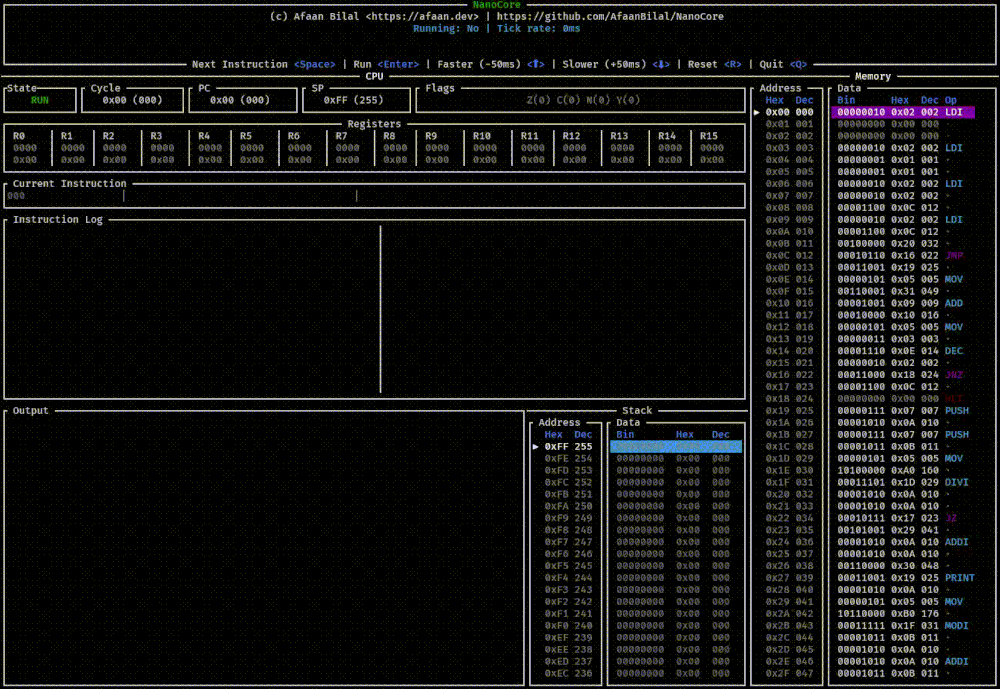

Terminal UI Debugger

Step through instructions, inspect registers and memory live, and set breakpoints — all inside your terminal.

→Live register state for all R0–R15, PC, SP, and flags

→Full 256-byte memory view

→Instruction log with cycle counter

→Step, run, and breakpoint controls

→Program output panel

# Launch with any .nca or .ncb file
$ cargo run --bin tui -- programs/counter.nca


Get Started

Three ways to install NanoCore.

Compiled binaries

Download pre-built binaries for your platform from the GitHub releases page.

GitHub Releases →

cargo install

Install directly from crates.io. Requires Rust stable.

$ cargo install nanocore

Build from source

Clone the repository and build with Cargo.

$ git clone https://github.com/AfaanBilal/NanoCore.git
$ cd NanoCore && cargo build --release


Then run

# Run an example program
$ cargo run -- programs/fib.nca

# Launch the TUI debugger
$ cargo run --bin tui -- programs/counter.nca

# Run the test suite
$ cargo test


View on GitHub

Author

Afaan Bilal

Principal Software Engineer, CISO and open-source enthusiast.

NanoCore was built as a deep dive into CPU design, instruction set architecture, and the craft of writing an emulator from scratch in Rust.
